Automated Thermal Processing Solutions
Robotic Heat Treat System
ECM Robotics designs and integrates robotic heat treat systems for industrial lines. These specialized systems are a core part of our expertise in robotic solutions, combining deep heat treat knowledge with advanced industrial robotics.
ECM ROBOTICS
Robotic heat treat systems for standalone and integrated furnaces
Our robotic heat treat systems adapt to both standalone furnaces and fully integrated production flow, ensuring reliable, repeatable and safe handling throughout the process.
Our robotic solutions can handle automotive parts weighing up to 1500 kg. It can also handle delicate brazed parts in vacuum furnaces. Manufacturers tailor heat treatment robots to the specific constraints of each application.
Why automate
heat treatment ?.
Robotic automation has become a key enabler for modern heat treatment operations. By replacing manual or repetitive handling tasks, robotics ensures consistent process execution while significantly improving safety in high-temperature environments.
Automation allows manufacturers to handle heavy, hot or fragile parts with precision, reduce cycle times and integrate heat treatment seamlessly into the overall production flow. Vision systems and intelligent control further enhance flexibility, allowing rapid adaptation to part variations and production changes.
For global industrial players, thermal processing automation automation also means improves traceability, reduced dependency on manual labor and higher overall equipment efficiency.
Advanced robotic
heat treat systems.

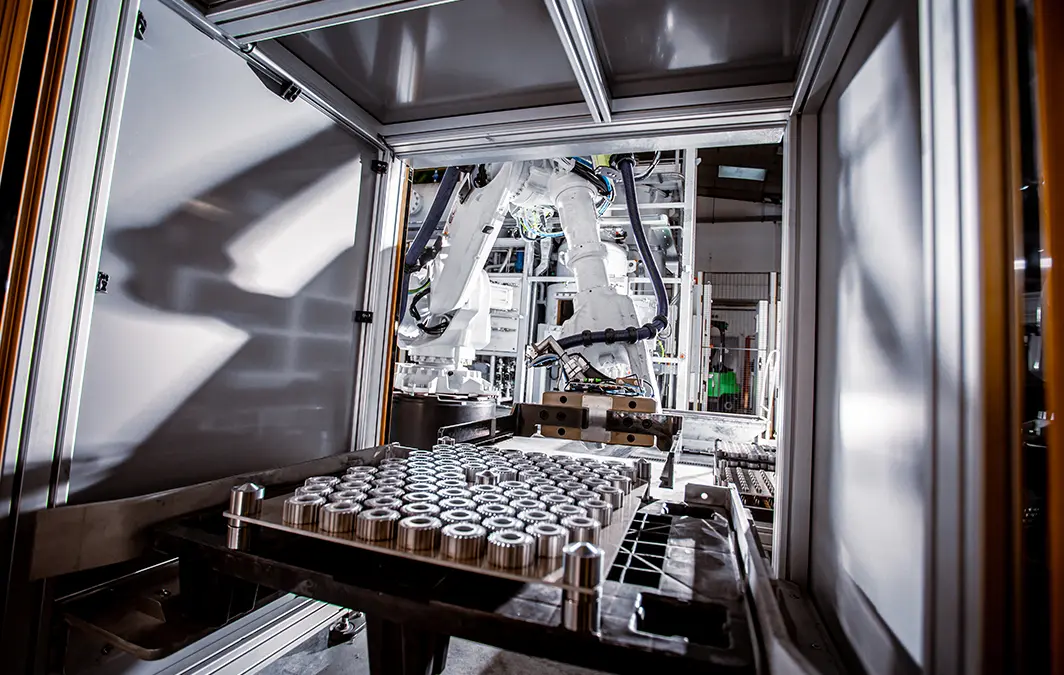

Robotic furnace loading & unloading
ECM Robotics designs robotic heat treating cells for automated furnace loading and unloading. This ensures safe, precise handling of parts before and after heat treatment. Our systems adapt to all furnace types, including atmosphere and vacuum furnaces. Our furnace loading robots can handle both heavy industrial loads and fragile components with high repeatability.

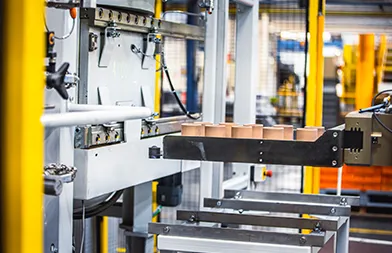

A walking beam system (pas de pèlerin) can be added to move parts step by step. This solution enables precise positioning, controlled indexing, and gentle component handling. Ideal for high-throughput heat treatment that is sensitive to distortion.

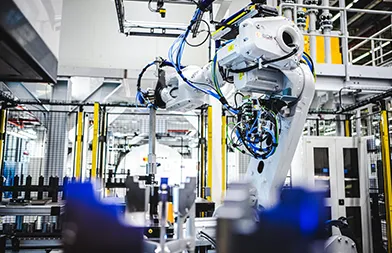

Load building cells with 2d/3d vision
Load building cells equipped with 2D or 3D vision systems enable automated recognition, positioning and stacking of parts prior to heat treatment. Vision-guided robotics ensures accurate load configuration even with part variability or mixed references.
This approach improves furnace utilization, reduces manual setup time and enables flexible production scenarios without compromising quality.

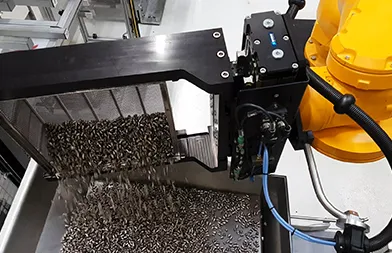

Robotic bulk processing (basket handling)
For bulk heat treatment processes, ECM Robotics integrates robotic basket handling solutions designed to manage large volumes of parts safely and efficiently. Robots handle baskets throughout the process, from loading to unloading, reducing manual intervention and improving consistency.
These systems are particularly suited for high-throughput environments where reliability and cycle time optimization are critical.

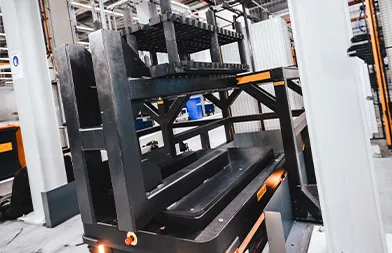

AMR integration in heat treatment lines
Autonomous Mobile Robots (AMRs) enable flexible transport of loads between heat treatment cells, furnaces and downstream operations. ECM Robotics integrates AMRs to automate internal logistics while adapting to evolving production layouts.
This approach increases flexibility, reduces fixed infrastructure and supports scalable automation strategies for modern factories.

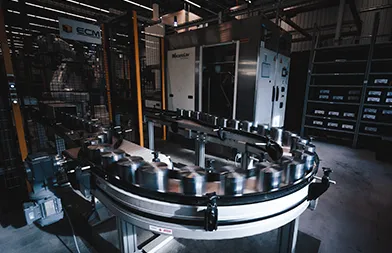

Conveyor
A conveyor system enables fully automated heat treatment lines. It ensures smooth, continuous, and synchronized material flow. It moves parts between furnaces, quenching systems, washing stations, and tempering units.
It reduces manual handling, increases throughput consistency, and improves traceability by integrating seamlessly with robotics and supervision systems. The result is enhanced productivity, process stability, and safer operations.

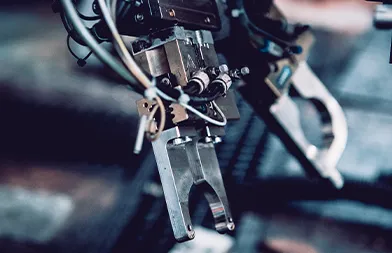

End-effectors for heavy and fragile parts
End-effector tooling is a critical element in heat treatment automation. ECM Robotics designs custom end-effectors specifically adapted to high temperatures, heavy payloads and delicate components.
Our expertise in gripper development ensures secure handling, repeatable positioning and long-term reliability, even under the most demanding thermal and mechanical conditions.

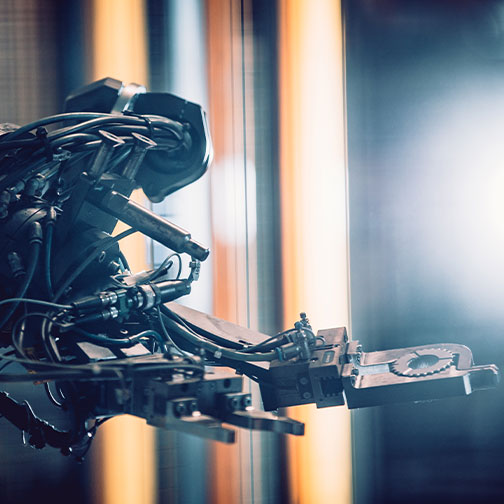

Automated distortion control
after heat treatment.
Heat treatment can introduce dimensional distortion that must be controlled to ensure part conformity. ECM Robotics integrates automated post-treatment inspection and distortion control solutions directly into the production flow.
By combining robotics with measurement and inspection technologies, manufacturers can detect deviations early, reduce rework and maintain high-quality standards.
Non-destructive inspection technologies, such as eddy current testing (courants de Foucault), can be added to the automated line. They check surface integrity and size changes without slowing production.
Technical
specifications.
Payload up to 1500 Kg
2D / 3D vision-guided robotics
Custom End-of-Arm Tooling (EOAT)
High-temperature environmnent design
Integration with MES / PLC
Compliance with industrial safety standards
Unique expertise dedicated
to heat treatment.
ECM Robotics is part of the ECM Group, a global reference in heat‑treatment technologies. This unique positioning lets us blend deep process expertise with advanced robotic integration capabilities, delivering solutions that are engineered from the furnace up to the robot‑cell level.
Through ECM Technologies, the Group’s dedicated industrial vacuum furnace division, we can offer customers a single source for both the heat‑treatment equipment and its seamless robotisation. The advantage for the client is a fully coordinated design and installation—no need to manage separate vendors, negotiate multiple interfaces, or tolerate costly integration delays. By sourcing the furnace and the robot together, you benefit from guaranteed mechanical and control compatibility, a shorter project‑lead time, reduced overall cost of ownership, and a smoother path to ROI.
Our teams design custom automation solutions tailored to each customer’s production constraints, from concept to commissioning and long‑term support. With proven international installations, ECM Robotics is a trusted partner for complex heat‑treatment automation projects worldwide.
FAQ about
robotic heat treat system.
What are the benefits of automation for heat treating industry ?
Robotic heat treat system improve process consistency, traceability, productivity, and safety. By integrating robotic furnace loading & unloading, automated load building, and distortion control, manufacturers can :
- Reduce human error and variability
- Increase throughput and OEE
- Ensure repeatable part positioning and thermal uniformity
- Improve operator safety in high-temperature environments
- Enable full digital traceability and data integration
Automation is particularly valuable for high-volume or high-precision heat treatment operations where repeatability and reliability are critical.
Can you automate an existing furnace ?
Yes, we can automate your existing furnace, whether it’s to automate load preparation, transport heat treatment fixtures, or automate furnace loading.
Which robot manufacturers can we integrate ?
We partner with the world’s leading robotics and machine‑vision suppliers to give you the most reliable, high‑performance automation possible. In our projects you will regularly see robots from ABB, FANUC, Stäubli and KUKA, combined with vision solutions from Keyence, Cognex and SensoPart.
For motion‑control and supervisory logic we typically use Siemens or Schneider Electric PLCs, but we are fully capable of integrating any controller that has already been qualified on your plant.
In short, our integration team selects the best‑in‑class hardware from these trusted OEMs – and we are happy to work with any additional robot or vision brand that you may already have approved.
